ClydeUnion CUP-OH2 - Single stage API end suction pump

ClydeUnion CUP-OH2

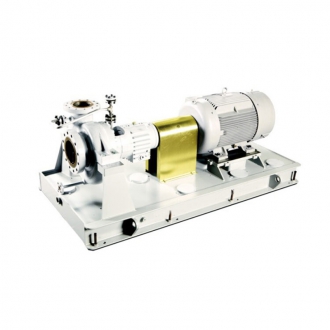

The ClydeUnion Pumps CUP-OH2 pump is a heavy duty, single stage, radially split, overhung, end suction machine, designed and manufactured to the latest edition of API 610.
The CUP-OH2 pumps have stringent API noise and vibration limits which are met, due to a rigid pump body with 360 degrees bearing support and heavy centerline mounting.
Reliable operation at elevated temperatures is ensured due to a number of cooling methodologies complementing inherently cool running bearing modules.
A back pull-out design allows the complete rotating assembly to be removed without disturbing the suction or discharge pipework.
ClydeUnion Pumps legacy brands including HHS, DB10, SMK and H-OP provide the industry with a very comprehensive hydraulic coverage.

Rigid shaft design with minimized deflection at the seal faces to below API 610 criteria, provides a longer mechanical seal life
High rigidity baseplate designs are among the stiffest in the industry
Bearing housing cooling fins provide optimum heat transfer
API material options from S4 to D2 - NACE, low temperature and other material options available

Applications for:

Petroleum / refinery
Gas processing
Offshore installation
Desalination
Petrochemical
Nuclear / conventional power
Jet fuelling systems
